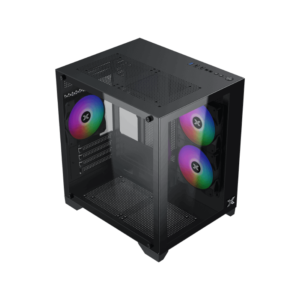

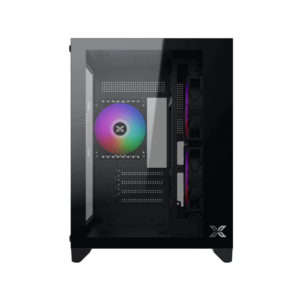

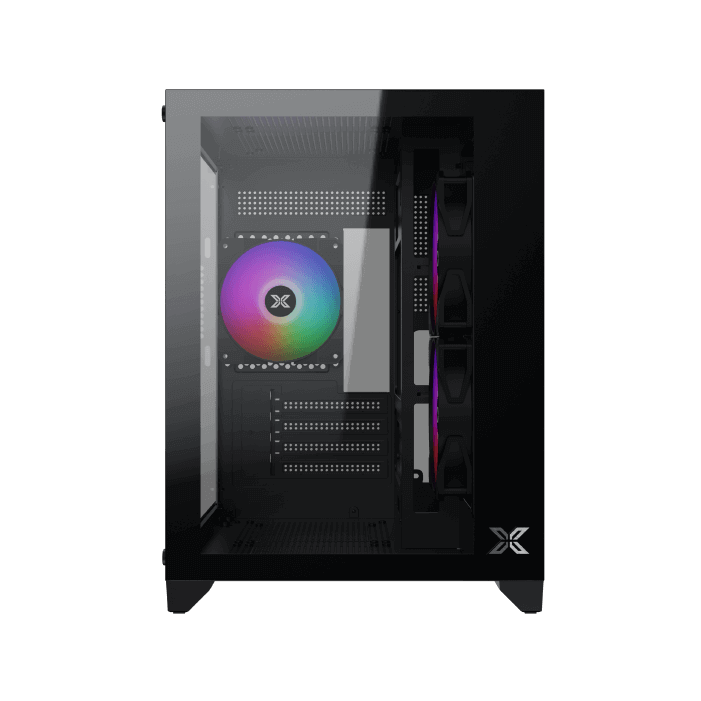

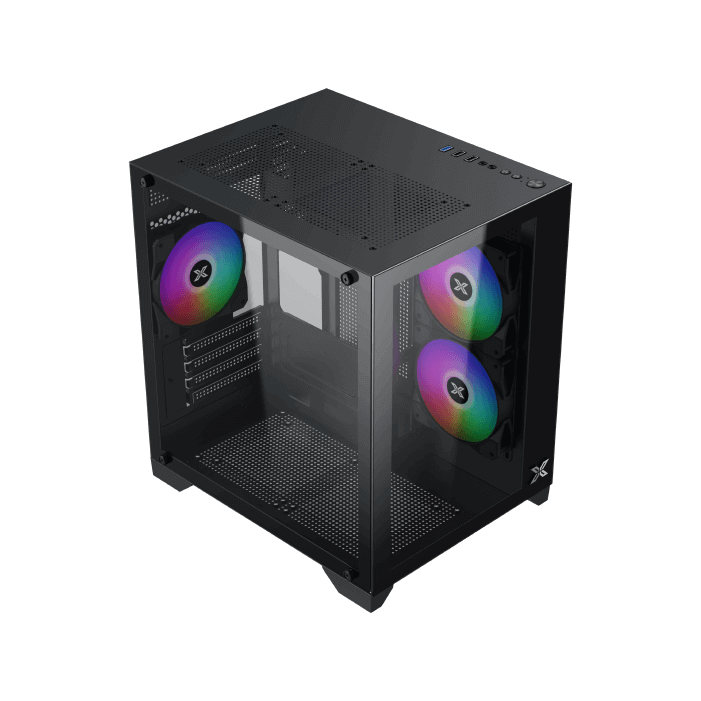

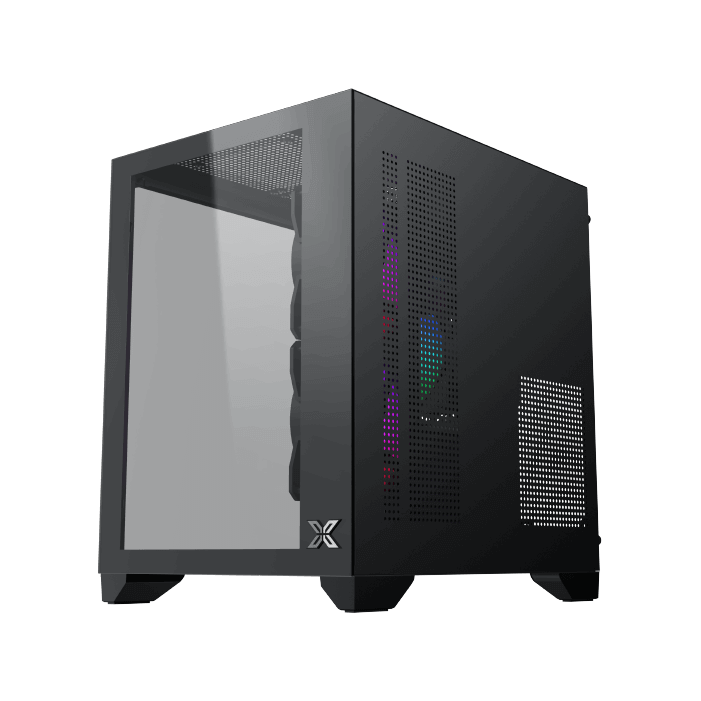

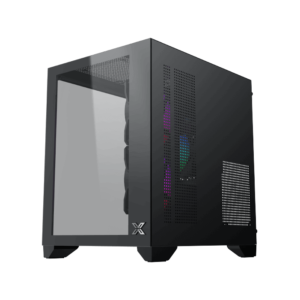

Aqua M Lite (Black, Micro ATX, USB3.0x1+USB2.0x2, Front & Left TG Panel)
Aqua M Lite (Black, Micro ATX, USB3.0x1+USB2.0x2, Front & Left TG Panel)
| PRODUCT NAME | AQUA M LITE |
| MATERIAL | STEEL |
| DIMENSIONS | 339X270X375MM (LXWXH) |
| DRIVE BAYS | HDD/SSD BRACKET: 3.5″ X1 & 2.5″ X2 |
| EXPANSION SLOTS | 4 STANDARD SLOTS |
| MOTHERBOARD SUPPORT | MICRO ATX & MINI ITX |
| POWER SUPPLY | STANDARD PS2 ATX PSU |
|
FAN SUPPORT |
TOP: 120MM X2 OR 140MM X2
MB: 120MM X2 BOTTOM: 120MM X2 OR 140MM X2 REAR: 120MM X1 |
| RADIATOR SUPPORT | TOP: 240
MB: 240 REAR: 120 |
| I/O PANEL | USB 3.0 X 1
USB 2.0 X 2 HD AUDIO |
| CPU COOLER CLEARANCE | 160MM |
| VGA LENGTH LIMITATION | 330MM |
| PSU LENGTH LIMITATION | 165MM |
